Excavator Mounted Pile Driving Hammer
Instruction

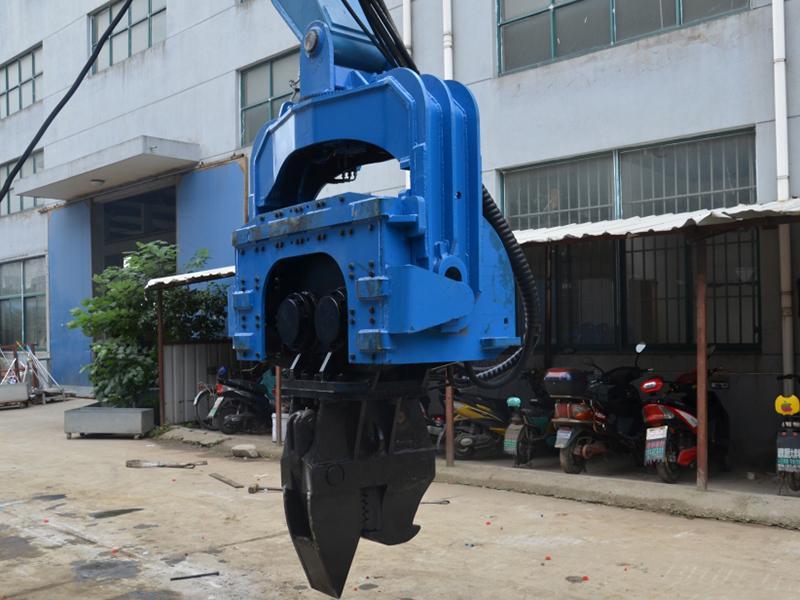

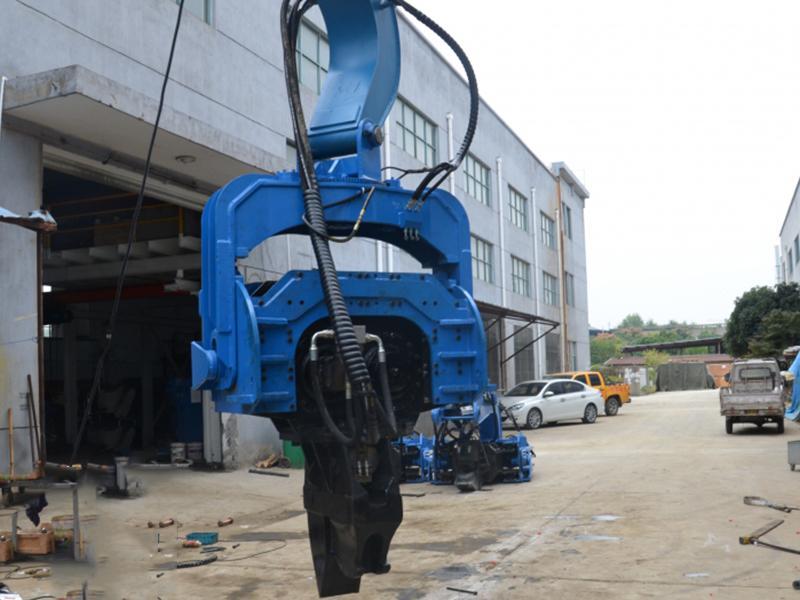

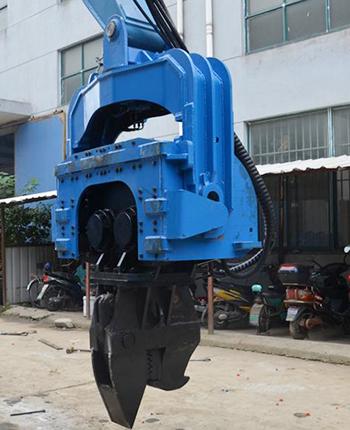

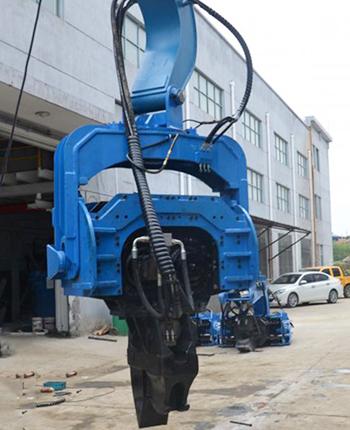

The excavator mounted pile driving hammer, and high frequency hydraulic vibratory hammer are powered by the excavator’s hydraulic system. These pile driving hammers are easy to mount, and the piling process is controlled by the excavator’s operator. Applicable pile types include lassen sheet piles, concrete piles, steel sheet piles, steel pipe piles, wood piles, precast concrete piles and H piles. All structural vibratory hammer parts are made of a high intensity, durable Q345B steel, and utilize a hydraulic drive. The hydraulic pressure is adjustable according to different soil textures, allowing piling to be carried out with a suitable impact force.

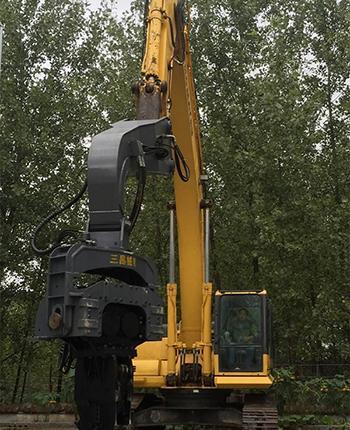

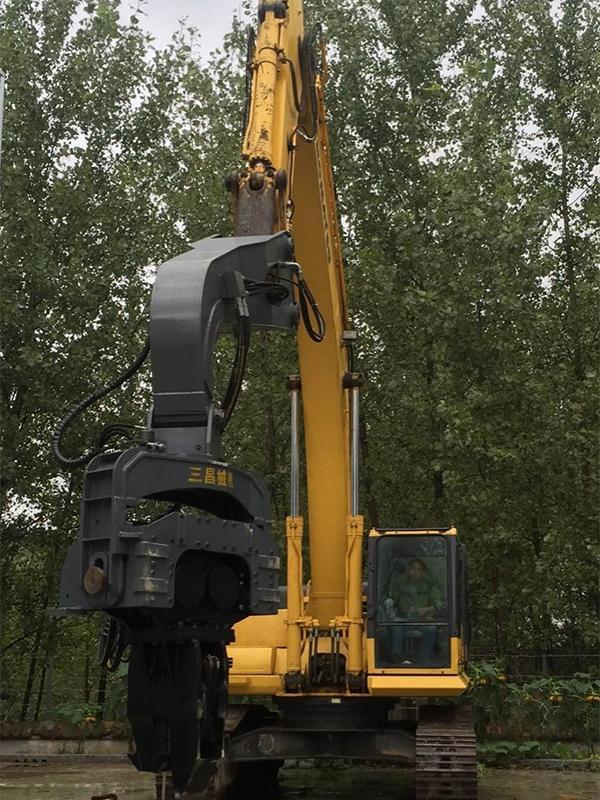

Our high frequency hydraulic vibratory hammers can be paired with excavators from a number of internationally known brands, including Hitachi, Komatsu, Kobelco, Doosan, Sunward, Sany, XCMG, Caterpillar, Sumitomo and other. Provide us with the excavator brand and type, and the pile type, and we will offer the right customized vibratory hammer to meet customer needs.
Optional vibratory hammer
1. Vibratory pile driving hammer suitable for 10-18t excavator
| Model | J200 |
| Frequency(r/min) | 2600 |
| Centrifugal force(KN) | 10-17 |
| Operating pressure(Bar) | 200-250 |
| Flow(L) | 100-180 |
| Dimensions(mm) | 1100*680*1650 |
| Weight(Kg) | 900 |
| Hydraulic excavator base machine(t) | 10-18 |
2. Vibratory pile driving hammer suitable for 20-24t excavator
| Model | J250 |
| Frequency(r/min) | 2600 |
| Centrifugal force(KN) | 35 |
| Operating pressure(Bar) | 350 |
| Flow(L) | 180 |
| Dimensions(mm) | 1340*755*2290 |
| Weight(Kg) | 1900 |
| Hydraulic excavator base machine(t) | 20-24 |
3. Vibratory pile driving hammer suitable for 24-33t excavator
| Model | J300 |
| Frequency(r/min) | 2600 |
| Centrifugal force(KN) | 40 |
| Operating pressure(Bar) | 350 |
| Flow(L) | 220 |
| Dimensions(mm) | 1340*755*2290 |
| Weight(Kg) | 1960 |
| Hydraulic excavator base machine(t) | 24-33 |
4. Vibratory pile driving hammer suitable for 33-36t excavator
| Model | J330 |
| Frequency(r/min) | 2600 |
| Centrifugal force(KN) | 42 |
| Operating pressure(Bar) | 350 |
| Flow(L) | 230 |
| Dimensions(mm) | 1340*755*2290 |
| Weight(Kg) | 1970 |
| Hydraulic excavator base machine(t) | 33-36 |
5. Vibratory pile driving hammer suitable for 33-40t excavator
| Model | J350 |
| Frequency(r/min) | 2600 |
| Centrifugal force(KN) | 45 |
| Operating pressure(Bar) | 350 |
| Flow(L) | 240 |
| Dimensions(mm) | 1420*800*2420 |
| Weight(Kg) | 2100 |
| Hydraulic excavator base machine(t) | 33-40 |
6. Vibratory pile driving hammer suitable for 40-42t excavator
| Model | J400 |
| Frequency(r/min) | 2600 |
| Centrifugal force(KN) | 50 |
| Operating pressure(Bar) | 350 |
| Flow(L) | 240 |
| Dimensions(mm) | 1420*800*2420 |
| Weight(Kg) | 2300 |
| Hydraulic excavator base machine(t) | 40-42 |
7. Vibratory pile driving hammer suitable for 42-45t excavator
| Model | J450 |
| Frequency(r/min) | 2600 |
| Centrifugal force(KN) | 55 |
| Operating pressure(Bar) | 350 |
| Flow(L) | 280 |
| Dimensions(mm) | 1420*800*2420 |
| Weight(Kg) | 2300 |
| Hydraulic excavator base machine(t) | 42-45 |
8. Vibratory pile driving hammer suitable for 45-55t excavator
| Model | J500 |
| Frequency(r/min) | 2600 |
| Centrifugal force(KN) | 60 |
| Operating pressure(Bar) | 350 |
| Flow(L) | 280 |
| Dimensions(mm) | 1420*800*2420 |
| Weight(Kg) | 2300 |
| Hydraulic excavator base machine(t) | 45-55 |
Custom Pile Driving Hammer

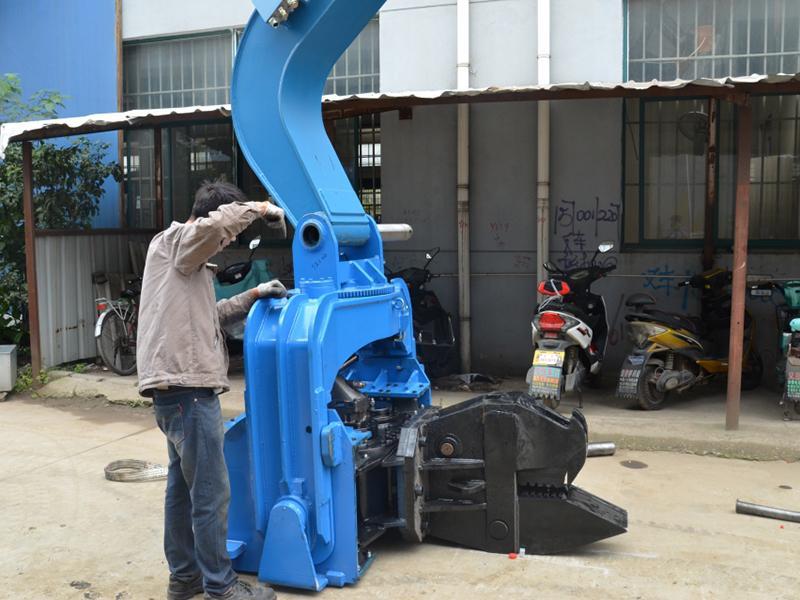

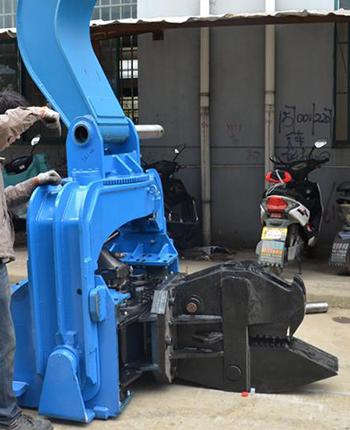

Our vibratory hammers are equipped with different custom grippers according to different customer requirements, including a bottom grip pile driver and side grip pile driver. We also offer customized hydraulic vibratory hammers according to pile types, including lassen sheet piles, concrete piles, steel sheet piles and more. For a highly efficient and practical vibratory hammer, and an applicable grip, please do not hesitate to contact us.
