Rig Mounted Vibratory Pile Hammer Projects in Maldives
Project time: 2015
Project site: Maldives

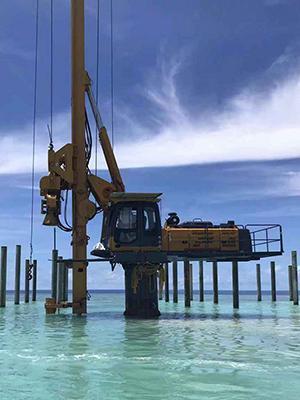

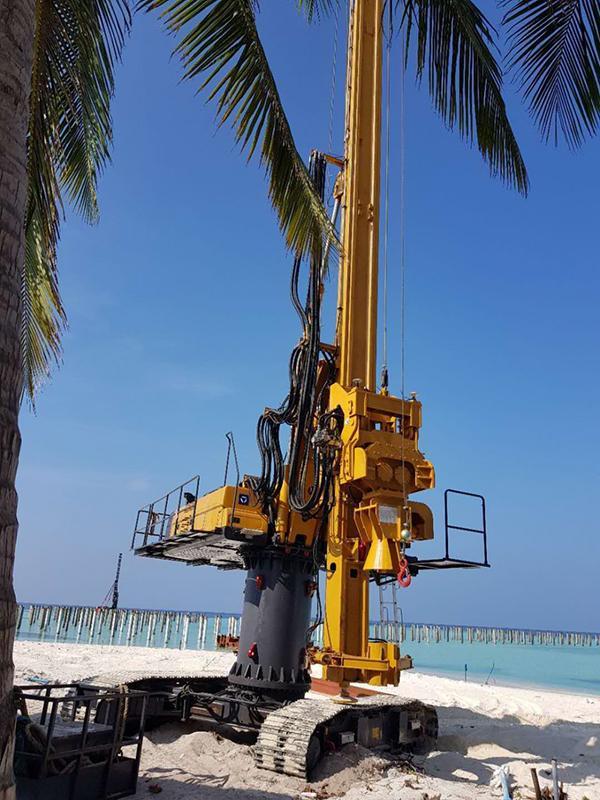

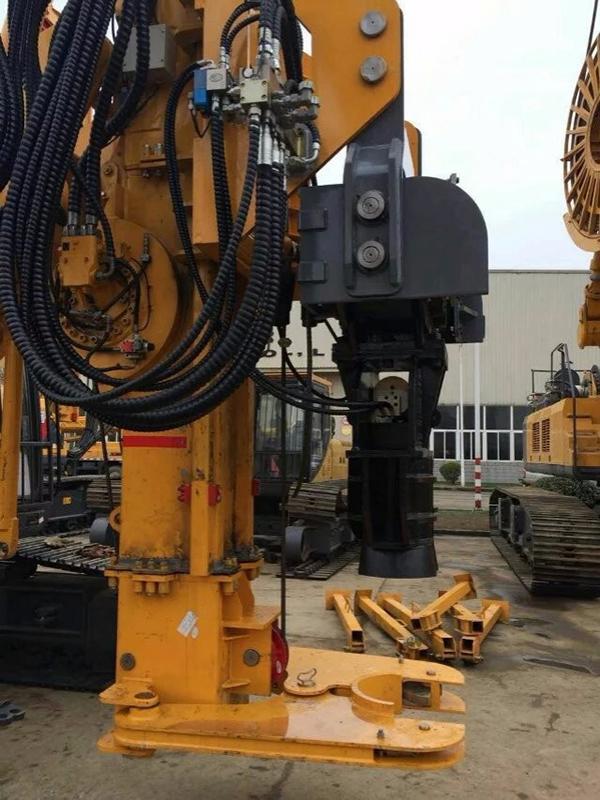

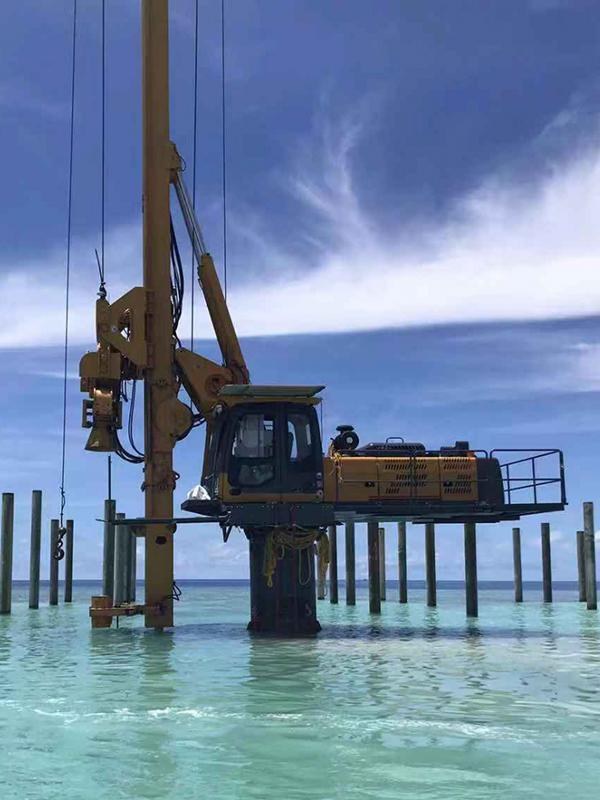

Our customer needed a batch of vibratory pile hammers to be mounted on a rig for pile sinking in a pile foundation for a reclamation area. According to the practical site conditions, including the soil texture and rig type, we carried out a targeted design, and provided the J330 vibratory hammer.
| Model | J330 |
| Frequency(r/min) | 2600 |
| Centrifugal force(KN) | 42 |
| Operating pressure(Bar) | 350 |
| Flow(L) | 230 |
| Dimensions(mm) | 1340*755*2290 |
| Weight(Kg) | 1970 |
| Hydraulic excavator base machine(t) | 33-36 |
